The ground under a building is supposed to stay put. On expansive soil, it doesn’t. These soils swell when they get wet and shrink when they dry, so the dirt under a slab can rise and fall by inches as the seasons change. Structural engineering is what keeps a building stable while the ground beneath it moves. It is also one of the costliest soil problems in the country. The American Society of Civil Engineers links it to more than 15 billion dollars in damage a year. Plan for it early and the building rides the movement. Ignore it and the repairs can cost more than the foundation did.
Why Expansive Soils Create Unique Structural Challenges
Expansive soils are clays that react to water. Add moisture and they swell. Take it away and they shrink. Most of that movement happens in the top layer of soil. That’s the part that wets and dries with the weather.
The danger is that the movement is uneven. One side of a slab might lift while another stays put, or the edges might rise while the center holds. That uneven push twists a foundation, cracks a slab and stresses the frame above. You see it later as stair-step cracks, sticking doors and floors that no longer sit level. The soil can lift the ground surface several inches, and far more on the worst sites.

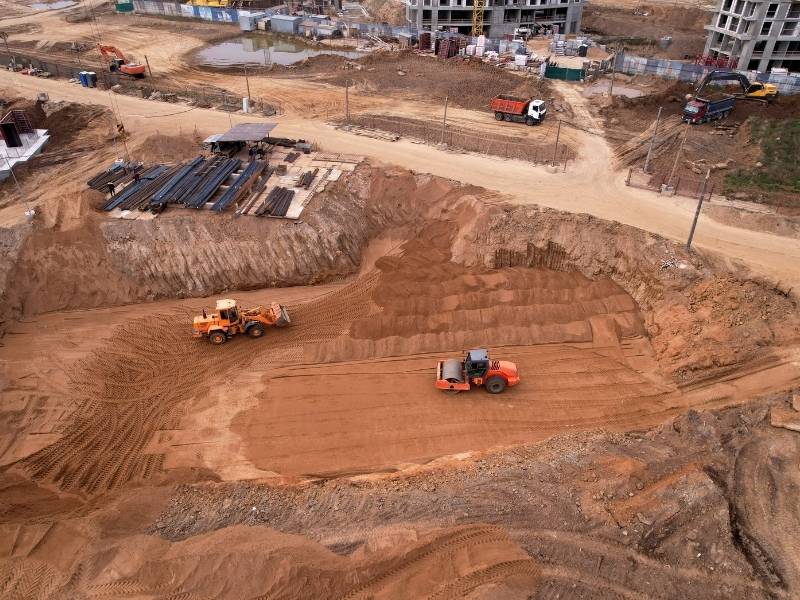

Foundation Design Strategies That Help Manage Soil Movement
There are two ways to deal with moving soil. You ride the movement, or you get below it. The right call depends on how much the soil swells.
Post-tensioned slabs ride the movement
A post-tensioned slab is pulled tight with steel cables so the whole slab acts as one stiff piece. When the soil moves, the slab moves as a unit instead of cracking apart. Engineers design these to a national standard called PTI DC10.5. The goal is a slab that stays whole through the movement a site will see. This works well on soil that swells a little to a fair amount.
Drilled piers get below the movement
For soil that swells a lot, the better move is to reach past it. Crews drill concrete piers down to stable soil, often 10 to 25 feet deep, below the layer that wets and dries. The building rests on those piers while the surface clay moves around them. Grade beams span between the piers. A void space under the beams gives the swelling clay room to rise without lifting the building.
A regular slab can work on milder sites too. It has to be stiffened, with a moisture barrier around the edge. That barrier keeps the soil under the slab steadier, but it only suits ground that barely moves.
Moisture Control Planning Plays a Critical Role in Structural Performance
The damage comes from the change in moisture, so the goal is to keep moisture steady around the foundation. Grade the ground so water runs away from the building, not toward it. Carry downspouts well clear of the foundation instead of dumping water within a few feet of it. Don’t let the water pond against the slab.
Watering matters too. Soak one side of the house and not the other, and the soil swells unevenly. That’s the exact movement you want to avoid. Big trees pull moisture out of the soil and shrink it on one side, so keep them back or use root barriers. Steady moisture means steadier ground, and steadier ground means less stress on the structure.
Structural Engineering Decisions Must Account for Seasonal Soil Changes
Expansive soil doesn’t move once and stop. It cycles. The wet season swells it and the dry season shrinks it, year after year. The edges of a building feel that swing the most, since the middle is shielded by the slab above it.
A structural engineer designs for the full range of that movement, not a single moment. The foundation has to handle the soil at its wettest, at its driest and at every point in between. That’s why these systems are built to flex with the ground rather than fight it. Ignore the seasonal swing and the building cracks the first time the soil hits an extreme.
Early Site Investigation Helps Prevent Costly Structural Repairs
You can’t pick the right foundation without knowing how bad the soil is. That starts with a geotechnical study built around expansive soil. The lab measures how much the clay swells and how deep the active layer runs. The engineer turns those numbers into a foundation design.
A good report gives the structural engineer the data that drives the design.
- The plasticity index, a lab score for how much the soil shrinks and swells.
- The expansion index, a direct swell test used to flag expansive soil.
- The depth of the active zone, which sets how deep piers must go.
- The swelling pressure, used to size slabs and piers.
- Any sulfate in the soil, which affects whether lime treatment will work.
Skip this step and you’re guessing at the one thing the whole building sits on. A soil report costs a small fraction of fixing a heaved foundation later. On expansive soil, that guess is the most expensive one you can make.
Frequently Asked Questions
What are expansive soils and why are they a concern for buildings?
Expansive soils are clay soils that swell when wet and shrink when dry. That movement is uneven, so it pushes on foundations and slabs from below and can crack or tilt them over time. They are tied to billions of dollars in building damage each year.
How do structural engineers design foundations for expansive soil conditions?
They either ride the movement or get below it. A post-tensioned slab stays stiff and moves as one piece, while drilled piers reach down to stable soil past the layer that swells. The choice depends on how much the soil moves and how deep the active layer runs.
Can moisture changes cause structural damage over time?
Yes, and moisture change is the main cause. Each wet and dry cycle swells and shrinks the soil, and that repeated push slowly cracks slabs, walls and foundations. Keeping moisture steady around the building is one of the best ways to limit the damage.
Why is geotechnical testing important on expansive soil sites?
Testing tells the engineer how much the soil swells and how deep the active layer goes. Those numbers decide the foundation type and the depth of any piers. Without them, the design is a guess, and a wrong guess on expansive soil is expensive to fix.
What are common signs of foundation movement caused by expansive soils?
Common signs include stair-step cracks in walls and doors or windows that stick. Floors that feel uneven and gaps where walls meet ceilings are also clues. Two or more of these together usually point to soil movement below.
