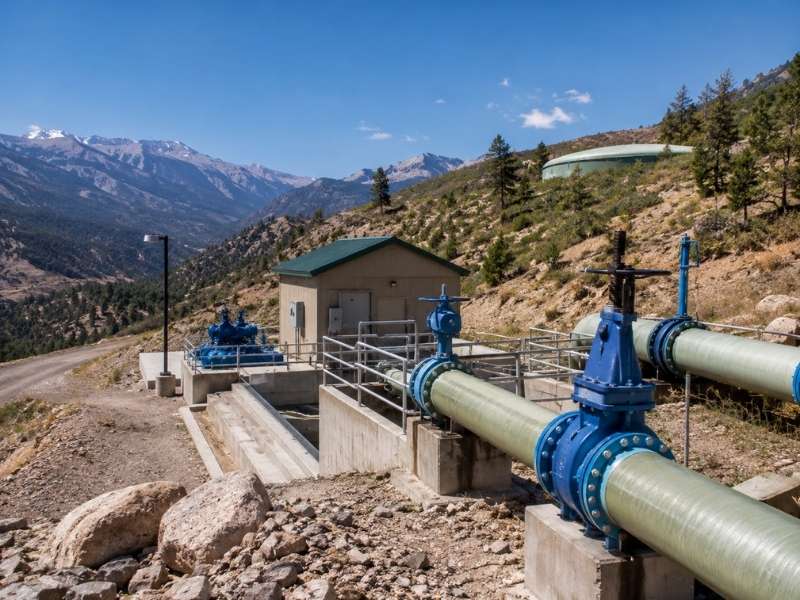

Water gets harder to hold back the higher the ground climbs. In a place like Colorado Springs, the land rises fast as you move toward the mountains. That steep grade puts a real problem in front of anyone who designs a water system. Pipeline engineering has to keep pressure safe for the homes up high and the homes down low at the same time.
The Reason Steep Terrain Forces a City Into Separate Pressure Zones
Water pressure changes with height. It goes up about 1 psi for every 2.31 feet a pipe drops in elevation. So one water zone spread across a tall hill would leave the low homes with too much pressure and the high homes with too little.
- Most homes work best when pressure stays near 40 to 80 psi.
- Across a few hundred feet of grade, the pressure swing runs far wider than that band.
- Engineers split the service area into stacked zones, so each one stays inside the safe range.
Each zone sits at its own height band. That keeps water usable whether a house is near the valley floor or well up the slope. The split is what stops the low homes from getting blasted and the high homes from running weak.
What Happens at the Seam Where Two Pressure Zones Meet
The hardest work sits at the boundary between two zones. A pressure reducing valve vault drops high-zone water down to feed a lower zone. A booster pump station lifts water the other way, up to a higher zone.
- Flow at the seam can run one way, or switch direction as demand shifts.
- The valve station has to hold its pressure target all day, from quiet mornings to busy evenings.
- A small drift at the seam changes pressure for every home behind it.
The long pipe runs are the simple part. Most of the real design choices happen right at these handoff points. Get the seam right, and the zones on both sides behave.
The Pressure Surge Risk That Grows With Every Foot of Elevation
Fast changes in flow send a shock wave through the pipe. People call it a water hammer. When the water already sits under a high static head from elevation, that shock hits harder.
- Pump starts, sudden pump trips, and quick valve closures all set off surges.
- Engineers run a transient analysis to model these spikes before anything gets built.
- Air and vacuum valves plus surge control gear go in at the spots where zones hand off.
A short power blip can turn into a sharp spike on a steep line. Without a plan for it, that spike can crack a fitting or split a joint. Surge protection at the seam keeps a small event from becoming a break.
Why High-Zone Pipe Must Handle Pressure Even When No Water Moves
Pipe in a high zone stays under load even when no tap is open. Water in an upper tank pushes down on the pipe wall day and night. So the pipe class gets picked for the worst-case still moment, not just for flow.
- Bends and tees on steep ground need thrust restraint to hold their place.
- Fittings get rated for the full standing pressure, with margin on top.
- Material and joint choices shift compared to pipe laid on flat ground.
Flat-ground pipe mostly feels pressure while water moves. High-zone pipe carries a heavy load around the clock. That standing load drives the choice of pipe class, fittings, and restraint.
How Fire Flow Stays Reliable When Water Crosses a Zone Boundary
Every zone still has to push enough water for firefighting on top of normal use. The gear at a zone boundary can’t become the weak link in that job. A single stuck part should never pull pressure down for a whole zone.
- Backup valves and station bypasses keep water moving if one piece fails.
- SCADA monitoring watches pressure and flow at the seam in real time.
- Crews can spot a problem at the vault before homes ever feel it.
That’s why transition points get more review than a plain stretch of pipe. Many homes and a fire response can ride on one vault. A second valve or bypass gives the system a way to keep going if one piece quits.
Frequently Asked Questions
Why does going uphill actually lower the water pressure at the tap?
Water pressure comes partly from the weight of water sitting above the tap. As a pipe climbs a hill, there’s less height of water pushing down at the top. That means less pressure the higher you go. Homes near the top of a zone feel this drop the most.
What does a pressure reducing valve station do that a plain valve can’t?
A plain valve just opens or closes to start or stop flow. A pressure reducing valve station holds the downstream pressure at a set target. It keeps that target steady even as demand rises and falls through the day. That steady control is what a simple on-off valve can’t give you.
Can the same neighborhood be served by a booster pump and a PRV at the same time?
Yes, and it happens more than people expect. A booster pump can feed the area during high demand, while a pressure reducing valve feeds it at other times. The two act as backups for each other, which adds safety. Engineers set up the controls so only one source drives pressure at a time.
