Steep, rocky slopes sit close to many building sites near the Colorado Springs foothills. When a project goes in below one of those slopes, the gap between the rock and the building starts to matter. Construction design is where rockfall protection gets built into the plan, not bolted on at the end. This piece walks through how that thinking works when people will live or work in the finished building.
Start With the Rockfall Path, Not the Building Footprint
Rockfall design starts with where loose rock could go, not where the building sits. The design team looks at the slope above the site first. Only then does the protection get shaped around the proposed development.
A few things shape that picture:
- Slope geometry, meaning how tall and steep the rock face is
- Possible release areas, the spots where rock could break free
- Likely travel paths, or the routes a falling rock might take down the slope
- The location of the occupied building on the lot
- The open space between the slope and that building
Two sites can look alike and still behave very differently. A slight change in slope angle or rock condition can send rock along a new path. That’s why the same protection layout won’t fit every property. Each site needs its own read of the hazard before any design starts.
Design the Space Between the Slope and the Occupied Area
The space between the slope and the building is often the most useful part of the design. That open ground can do real work if it’s planned well. Designers look at whether there’s room for a catchment area, a barrier, or another built system.
The Federal Highway Administration describes catchment areas as spaces meant to slow falling rock and collect the material that comes down. Give rock room to lose energy, and it’s less likely to reach the building. But space alone isn’t a promise of safety. No single setback distance works everywhere, because rockfall behavior changes from site to site. A slope hazard assessment looks at the actual conditions before anyone settles on a layout.
Match the Protection System to the Expected Impact
The protection should fit the hazard, not the other way around. No product is the answer for every slope. Construction design pairs the system with how rock is expected to act on that site.
Systems that come up at a planning level include:
- Draped or anchored mesh laid against the rock face

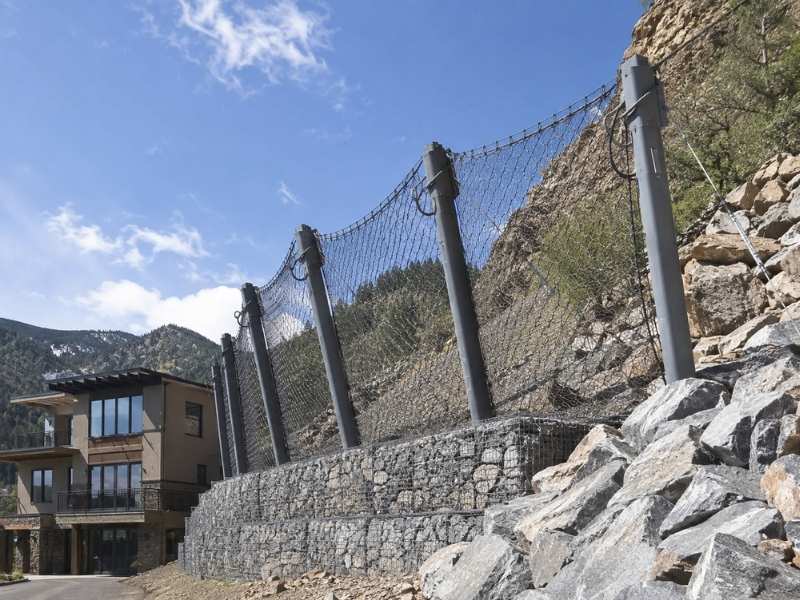

- Rockfall barriers or fences set below the slope
- Attenuators, which slow and steer rock rather than stop it cold
- Catchment areas that hold fallen material
- Structural barriers where the site calls for them
Colorado Department of Transportation projects show that different sites use different mixes. One location might combine scaling, mesh, and rock bolts. Another might lean on a barrier and a catchment area. The best mix depends on the slope, the rock, and the space available.
Account for Construction Access and Temporary Exposure
Building the project can change the hazard while work is going on. Excavation, rock removal, drilling, or cutting into a slope may shift conditions for a time. So the plan has to think about the construction phase, not just the finished site.
That often means looking at:
- Temporary protection during the work
- The order of slope-related tasks
- Exposure for workers and the public nearby
- Access for crews installing the protection
- Whether permanent protection can go in before other work begins
CDOT guidance treats rock excavation and construction as moments when rockfall needs attention, and when temporary measures during the work may fit. Putting permanent protection in early, where the site allows it, can lower exposure during the rest of the build. That kind of sequencing is part of the design, not a field call made later.
Leave Maintenance Access in the Construction Design
Protection isn’t a one-time install. A system that catches rock will fill up over time, and someone has to reach it. If the design forgets that, upkeep gets hard and sometimes unsafe.
Good construction design leaves room for the long haul:
- A way to reach the protective system
- Space to inspect it
- Room to clear collected debris
- A plan for vegetation or other site changes over time
- Access for future repair or replacement
- A path that keeps upkeep away from the occupied area
FHWA points out that picking a protection method should weigh how it gets built and how long it needs to last, not just how well it stops rock on day one. A system that works but can’t be reached becomes a problem later. Planning that access now saves trouble down the road.
Frequently Asked Questions
Can construction design reduce rockfall exposure for a building below a steep slope?
Yes. Site-specific construction design can add measures meant to catch, redirect, or hold falling rock before it reaches an occupied area. The approach depends on the slope, how rock is expected to fall, the space on hand, and the project’s conditions. No two slopes are read the same way, so the design follows the site.
Does every Colorado Springs foothill property need a rockfall protection system?
No. A rugged slope nearby doesn’t automatically mean a set protection system is required. Rockfall conditions are specific to each property, so the hazard has to be looked at for that lot and that building plan. Some sites need a full system, and others need little or none once the slope is studied.
Can a catchment area be used instead of a rockfall barrier?
Sometimes. A catchment area gives falling rock room to slow down and collect before it reaches the building. Whether it works in place of a barrier depends on the site’s shape, the space you have, and how rock is expected to move there. On tight lots, there may not be enough room, and a barrier or another system may fit better.
